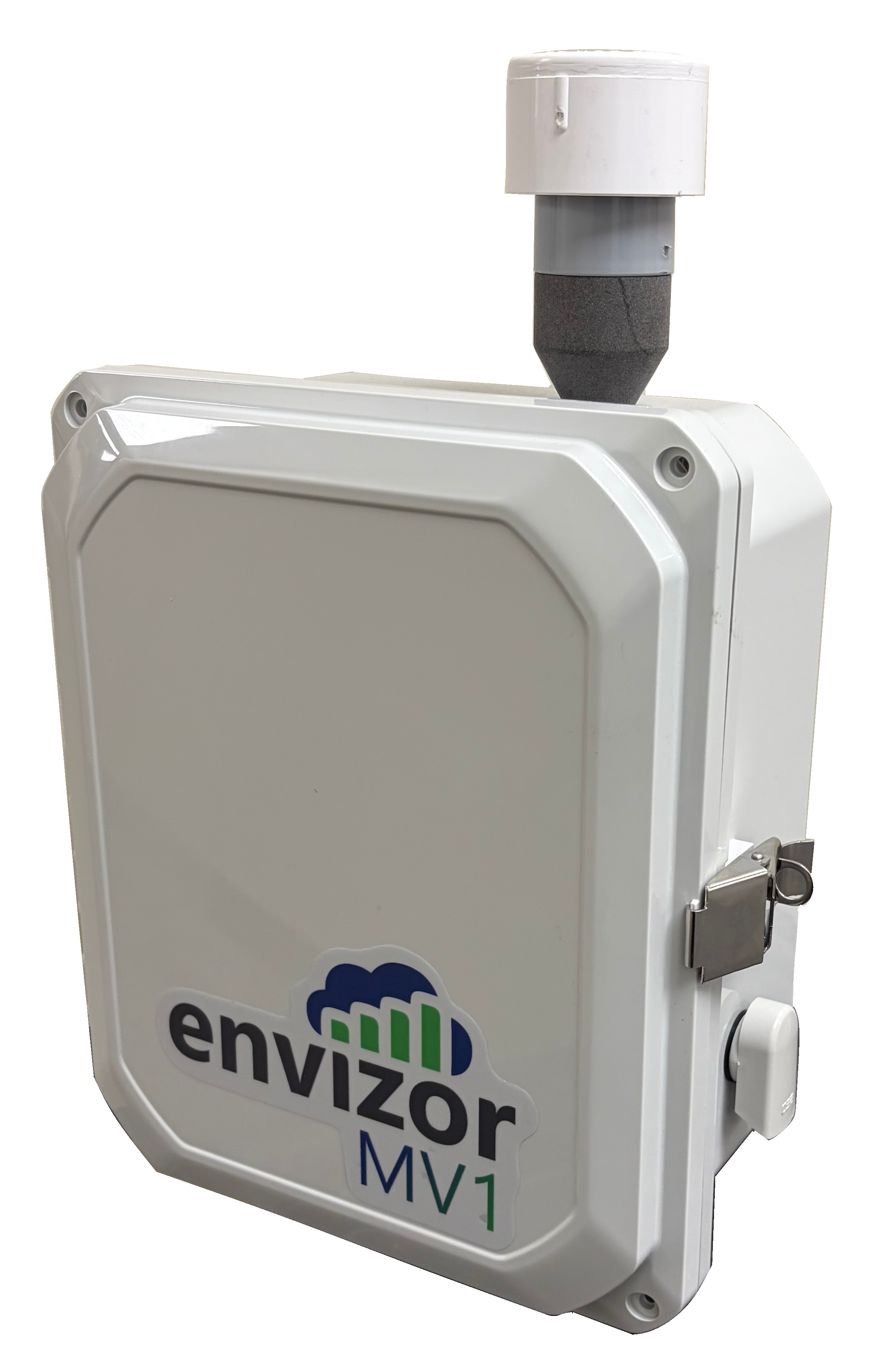

• Envizor™ MV1

    Real-time data telemetry just got easier

    MV1 measures up to 30 channels of particle count data and mass concentrations — including PM1, PM2.5, and PM10 — plus a photo-ionization detector (PID) with a 20 ppb minimum detection limit.

    Request a Quote

One enclosure. Particulates, VOCs, and weather.

  • Particulate

    30 channels of particle data

    Particle counts and mass concentrations including PM1, PM2.5, and PM10 — factory-calibrated size channels from 0.3 to 10.0 µm.

  • VOC

    Photo-ionization detector

    Onboard PID with a minimum detection limit of 20 ppb and a range above 200 ppm for total VOC screening.

  • Optional

    Davis Vantage Vue weather station

    Add an optional Davis Vantage Vue weather station for comprehensive on-site weather data.

In the field

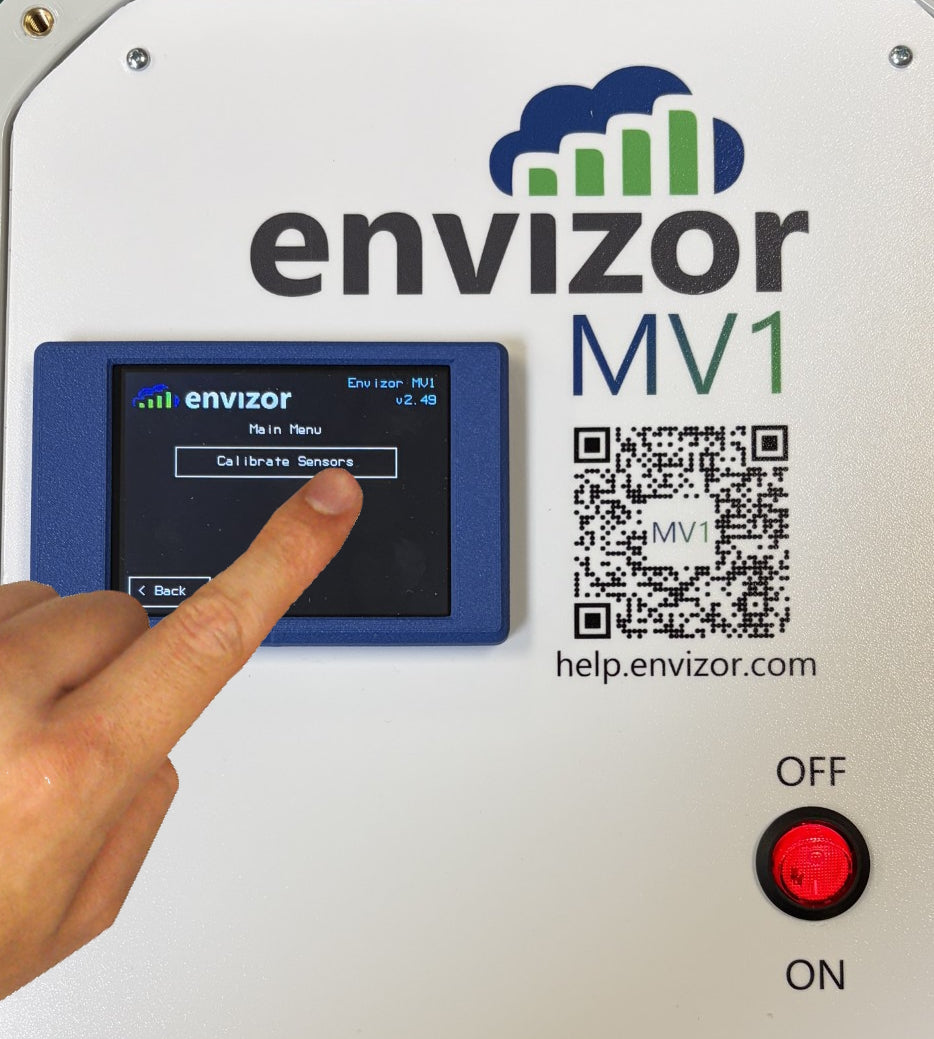

Calibrate at the unit

A convenient touchscreen allows for quick PM zero checks and re-calibration of the PID.

  • Quick PM monitor zero checks
  • PID re-calibration from the main menu
  • Live device and sensor status at a glance

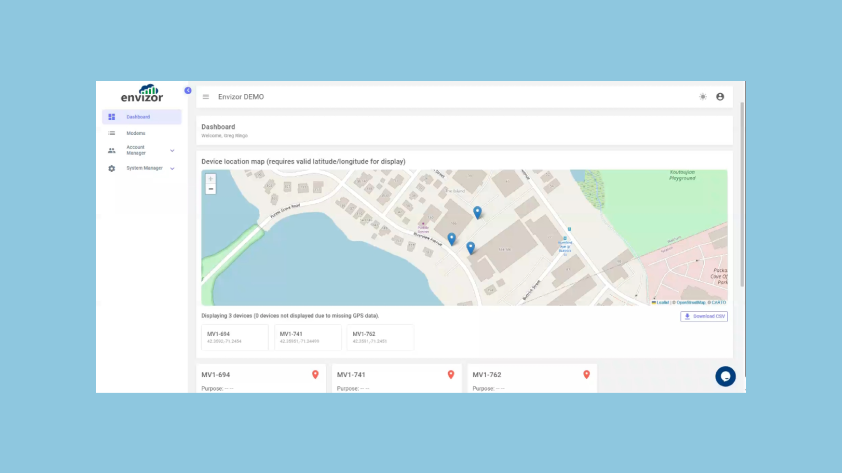

envizor.io web portal

Less time in front of the screen

Onboard cellular communication (Verizon LTE-M) and Wi-Fi enabled. The envizor.io web portal features mapping, data visualization tools, and detailed, automated reporting — so your team can spend more time on core responsibilities.

  • Device location mapping with GPS
  • Multi-channel charts with action-limit lines
  • Automated reports and CSV export

New

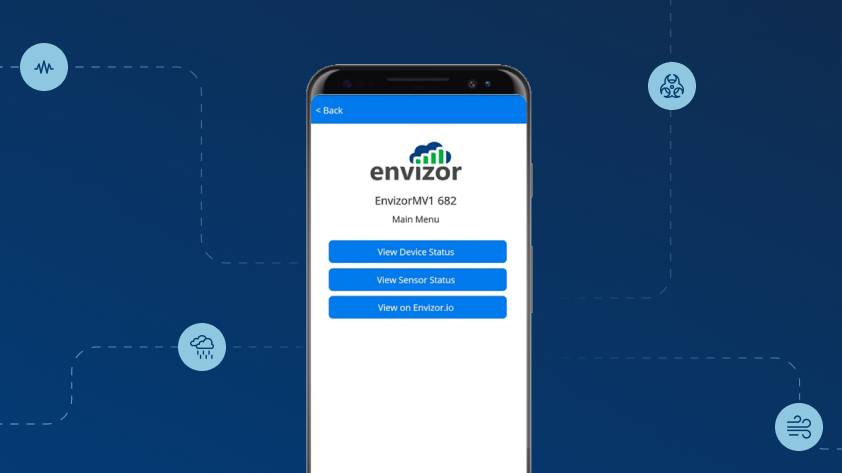

The Envizor MV1 Mobile App

  • PM monitor zero check
  • PID 2-point calibration (with 10 ppm Isobutylene only)
  • Real-time device & sensor status

Envizor™ MV1 technical specs

Particle Counter

Size range
0.3 to 25 µm
Size channels
0.3, 0.5, 1.0, 2.5, 5.0, 10.0 µm
Flow rate
1.2 LPM
Concentration range
0.01 to 20,000 µg/m³
Resolution
0.00003 µg/m³
Factory calibration
Every 3 years (recommended)
Units of measure
µg/m³ or mg/m³ (Web UI)

Photoionization Detector

Detection limit
20 ppb
Range
>200 ppm
Lamp energy
10.6 eV
Lamp life
10,000 hours
Environmental
Humidity resistance

Power & Communication

Power
12V supply · 320 mA avg.
Supply options
30W solar · LiFePo batteries · AC
Communication
LTE-M (NA) · 3G (Intl) · Wi-Fi
Data
new.envizor.io secure data center

Operational

Weatherproof
IP68
Humidity
<98% non-condensing RH
Dimensions
10.40 × 8.40 × 5.22 in.
Weight
5 lbs.

Need help with your MV1 project?

Visit the Envizor Help Center at help.envizor.com.

Visit the Help Center
